- Size: 165CBM
- Place of Origin: XUZHOU
- Brand Name: XJCM
- Model Number: QRY50
- Weight: 43000.000 kg

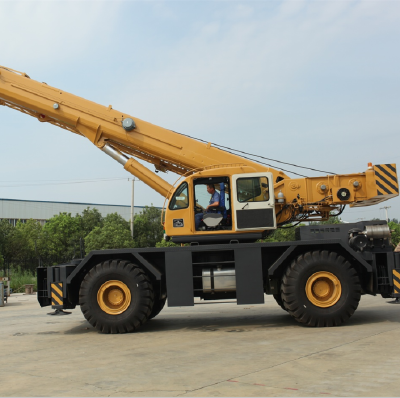

50 ton rough terrain crane/ China leading brand XJCM rough terrain crane/rough terrain crane 50 ton for sale/QRY50
Max. total rated lifting load: 55T
Full-extend boom lifting height: 35m
Full-extend boom jib lifting height: 50m
Dimension:12179x3350x3850mm
Weight: 40500kg
Engine: CUMMINS ISLe 310 30
Max output: 228kw
Max speed : 40km/h
Max gradeability: 55%
Four boom( 35m ), one jib(15m)
Double independent winches
Hydraulic oil radiator
5th outrigger
Upper and lower Air conditioner(cooling and heating) optional
Please contact us without hesitation,
Eva Zhang
Sales Manager
Whatsapp: 15628918531
Email: zhangx@xcmgqg.com
- Size: 165CBM
- Place of Origin: XUZHOU
- Brand Name: XJCM
- Model Number: QRY50
- Weight: 43000.000 kg
Category | Items | Unit | Parameters | |
Outline Dimension Parameters | Overall length | mm | 12450 | |
Overall width | mm | 3350 | ||
Overall height | mm | 3835 | ||
Axle base | mm | 4650 | ||
Tread | mm | 2690 | ||
Weight Parameters | Dead weight in travel state | Kg | 43000 | |
Power Parameters | Engine rated output | Kw (r/min) | 228/2100 | |
Engine rated torque | N.m (r/min) | 1200/1000~1700 | ||
Engine max. rated speed | r/min | 2100 | ||
Travel Parameters | Travel speed | Max. travel speed | Km/h | 40 |
Turing radius | Min. turning radius | mm | 6500 | |
Min. turning radius of boom head | mm | 11500 | ||
Min. ground clearance | mm | 483 | ||
Approach angle | ° | 24.5 | ||
Departure angle | ° | 24.5 | ||
Max. gradeability | % | 55 | ||
Category | Items | Unit | Parameters | |||
Main Lifting Performance Parameters | Max. total rated lifting load | t | 55 | |||
Min. rated working radius | m | 3 | ||||
Turning radius at swing table tail | m | 4.46 | ||||
Max. load moment | Base boom | KN.m | 1850 | |||
Fully extended boom | KN.m | 828 | ||||
Outrigger span | Longitudinal | m | 7.75 | |||
Lateral | m | 7.6 | ||||
Lifting height | Base boom | m | 10.3 | |||
Fully extended boom | m | 35.5 | ||||
Boom length | Base boom | m | 9.6 | |||
Fully extended boom | m | 35 | ||||
Jib installation angle | ° | 0/30 | ||||
Working Speed Parameters | Boom luffing time | Boom raising time | s | 85 | ||
Boom descending time | s | 85 | ||||
Boom telescoping time | Boom fully extended time | s | 120 | |||
Boom fully retracting time | s | 95 | ||||
Max. swing speed | m/min | 2 | ||||
Outrigger telescoping time | Horizontal outriggers | Extending synchronously | s | 30 | ||
Retracting synchronously | s | 25 | ||||
Vertical outriggers | Extending synchronously | s | 35 | |||
Retracting synchronously | s | 60 | ||||
Hoisting speed of single rope | Main winch | Full load | m/min | 120 | ||
No load | m/min | 120 | ||||
Auxiliary winch | Full load | m/min | 120 | |||
No load | m/min | 120 | ||||
