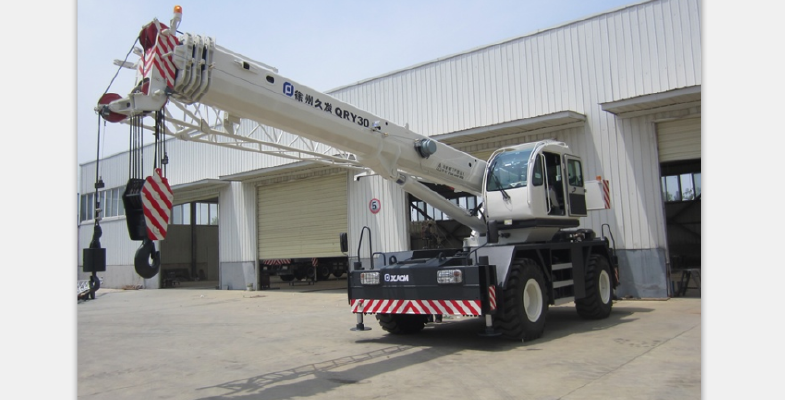

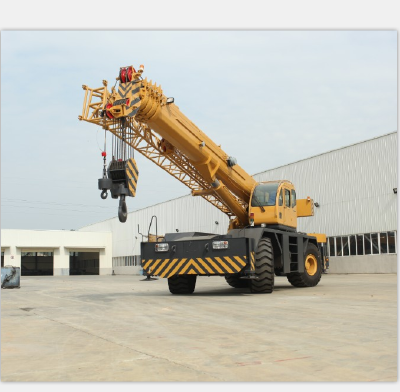

XJCM rough terrain crane/ 50T rough terrain crane
SPECIFICATION
Category | Items | Unit | Parameters | ||
Outline Dimension | Overall length | mm | 12880 | ||
Overall width | mm | 3080 | |||
Overall height | mm | 3625 | |||
Axle base | mm | 3950 | |||
Tread | mm | 2500 | |||
Weight | Dead weight in travel state | Kg | 36140 | ||
Axle load | Front axle | Kg | 19220 | ||
Rear axle | Kg | 16920 | |||
Power | Engine rated output | Kw (r/min) | 198 /2 5 00 | ||
Engine rated torque | N.m (r/min) | 970 /1 2 00 -1700 | |||
Travel | Travel s peed | Max. travel speed | Km/h | 40 | |
Turing r adius | Min. turning radius | mm | 6000 | ||
Turning radius at swing table tail | mm | 3620 | |||
Min. ground clearance | mm | 400 | |||
Approach angle | ° | 20 | |||
Departure angle | ° | 19 | |||
Braking distance (travel speed 30km/h) | m | ≤ 8.5 | |||
Max. grade ability | % | 55 | |||
Max. noise out of crane when accelerating | dB (A) | 8 8 | |||
IF YOU'RE INTERESTED IN OUR CRANE, PLEASE FEEL FREE TO CONTACT US!
